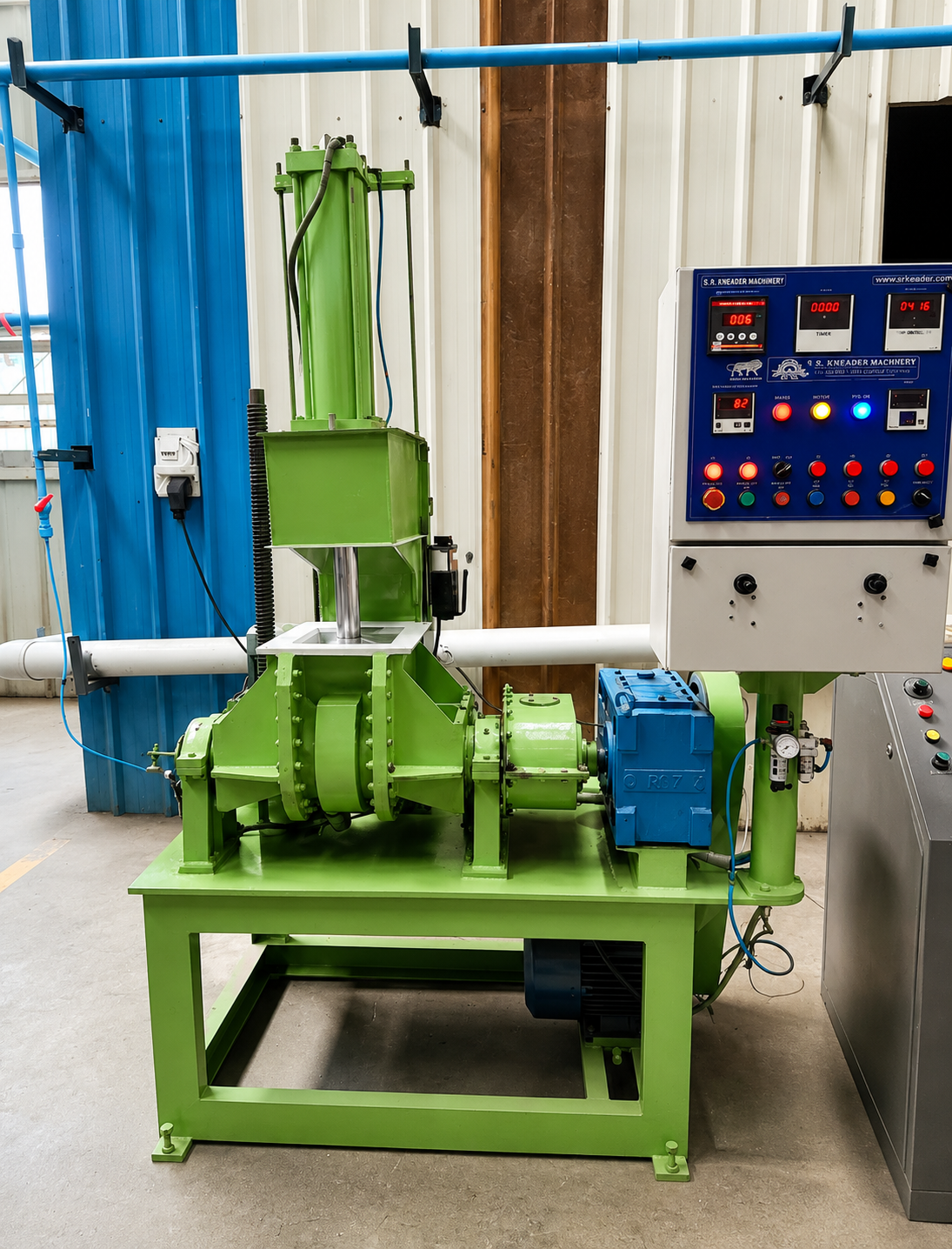

Rubber Dispersion Kneader Machine
Available in 3 L, 20 L, 150 L, and 200 L capacities. Custom sizes available on request.
Technical Specifications
3 L Lab
Laboratory Model
Mixing Capacity
3 Litres
Main Motor
5 HP
Chamber Volume
7 Litres
Tilting Method
Hydraulic
Rotor Speed (Front/Rear)
30/25 RPM
Tilting Angle
120–140 Degree
Tilting Motor
1 HP
Air Compressor
1 HP
Country of Origin
Made in India
20 L
Pilot Model
Mixing Capacity
15 Litres
Main Motor
15 kW
Chamber Volume
25 Litres
Tilting Method
Hydraulic
Rotor Speed (Front/Rear)
30/24 RPM
Tilting Angle
130 Degree
Tilting Motor
2 HP
Air Compressor
2 HP
Country of Origin
Made in India
150 L
Production Model
Mixing Capacity
150 Litres
Main Motor
200 HP
Chamber Volume
325 Litres
Tilting Method
Hydraulic
Rotor Speed (Front/Rear)
30/25 RPM
Tilting Angle
120–140 Degree
Tilting Motor
7.5 HP
Air Compressor
10 HP
Country of Origin
Made in India
200 L
Heavy-Duty Model
Mixing Capacity
200 Litres
Main Motor
150 kW
Chamber Volume
470 Litres
Tilting Method
Hydraulic
Rotor Speed (Front/Rear)
30/25 RPM
Tilting Angle
120–140 Degree
Tilting Motor
5 HP
Air Compressor
15 HP
Country of Origin
Made in India
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.
Available in various capacities to suit laboratory, pilot, and production requirements. All models are designed for reliable performance, easy maintenance, and long service life.
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.
Mixing Rotors
Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.
Pressure Lid
Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)
Dust Seal
Designed specifically to maintain the environment clean, and easily changed.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes
- Rubber for Electric wires
- Conveyor Belts & Power transmission belts
- Rubberized Rolls
- Rubber-based products such as plugs, caps, gloves, and dental supplies for the medical line
Additional Information
| Production Capacity | As per demand |
| Delivery Time | 15-20 Days |
| Packaging Details | As per demand |
